ListControl

Scrollable list control with single selection and keyboard/mouse navigation.

ListControl

Overview#

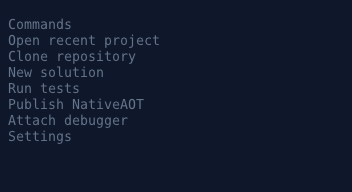

ListControl displays a scrollable list of items with selection support. Users can navigate with keyboard or mouse, select items, and activate items (double-click or Enter).

Properties#

Events#

Creating Lists#

Using Builder (Recommended)#

var list = Controls.List()
    .AddItem("Apple")
    .AddItem("Banana")
    .AddItem("Cherry")
    .AddItem("Date")
    .AddItem("Elderberry")
    .WithHeight(10)
    .WithColors(Color.White, Color.Grey15)
    .WithMouseWheelScrollSpeed(2)
    .WithName("fruitList")
    .OnItemActivated((sender, item, window) =>
    {
        windowSystem.NotificationStateService.ShowNotification(
            "Item Activated",
            $"You selected: {item.Text}",
            NotificationSeverity.Info
        );
    })
    .OnSelectionChanged((sender, index, window) =>
    {
        var status = window.FindControl<MarkupControl>("status");
        if (index >= 0)
        {
            status?.SetContent($"[dim]Selected: {sender.SelectedItem?.Text}[/]");
        }
    })
    .Build();

window.AddControl(list);

Using Constructor#

var list = new ListControl
{
    MaxVisibleItems = 10,
    BackgroundColor = Color.Grey15,
    ForegroundColor = Color.White
};

list.Items.Add(new ListItem("Item 1"));
list.Items.Add(new ListItem("Item 2"));
list.Items.Add(new ListItem("Item 3"));

list.ItemActivated += (sender, item) =>
{
    // Handle activation
};

list.SelectedIndexChanged += (sender, index) =>
{
    // Handle selection change
};

window.AddControl(list);

Keyboard Support#

Mouse Support#

Lists used as menus#

A list activates on a double click, which is right for a file list and wrong for a menu — nobody double clicks a start menu. Set ActivateOnSingleClick and one click both selects and activates:

var menu = new ListControl { ActivateOnSingleClick = true };
menu.ItemActivated += (_, item) => Run(item);

The two properties are independent, and the pairing is worth knowing:

ListItem#

Items in the list are ListItem objects:

public class ListItem
{
    public string Text { get; set; }
    public object? Tag { get; set; }  // Store custom data
}

Examples#

Simple List#

var list = Controls.List()
    .AddItem("Option 1")
    .AddItem("Option 2")
    .AddItem("Option 3")
    .WithHeight(5)
    .OnItemActivated((s, item, w) =>
    {
        windowSystem.NotificationStateService.ShowNotification(
            "Selected", item.Text, NotificationSeverity.Success);
    })
    .Build();

window.AddControl(list);

List with Custom Data#

public class Person
{
    public string Name { get; set; }
    public int Age { get; set; }
}

var people = new[]
{
    new Person { Name = "Alice", Age = 30 },
    new Person { Name = "Bob", Age = 25 },
    new Person { Name = "Charlie", Age = 35 }
};

var list = new ListControl { MaxVisibleItems = 10 };

foreach (var person in people)
{
    list.Items.Add(new ListItem(person.Name)
    {
        Tag = person  // Store custom data
    });
}

list.ItemActivated += (sender, item) =>
{
    var person = item.Tag as Person;
    if (person != null)
    {
        windowSystem.NotificationStateService.ShowNotification(
            "Person Details",
            $"{person.Name} is {person.Age} years old",
            NotificationSeverity.Info
        );
    }
};

window.AddControl(list);

Master-Detail Pattern#

var list = Controls.List()
    .AddItem("Item 1")
    .AddItem("Item 2")
    .AddItem("Item 3")
    .WithName("masterList")
    .OnSelectionChanged((sender, index, window) =>
    {
        var detail = window.FindControl<MarkupControl>("detailView");
        if (index >= 0)
        {
            var item = sender.SelectedItem;
            detail?.SetContent(new List<string>
            {
                $"[bold yellow]{item?.Text}[/]",
                "",
                "Detailed information about this item...",
                $"Selected index: {index}"
            });
        }
    })
    .Build();

window.AddControl(list);

window.AddControl(
    Controls.Markup()
        .AddLine("[dim]Select an item to see details[/]")
        .WithName("detailView")
        .Build()
);

Searchable List#

var allItems = new[] { "Apple", "Apricot", "Banana", "Blueberry", "Cherry", "Date" };

var list = Controls.List()
    .WithHeight(10)
    .WithName("searchableList")
    .Build();

// Initialize with all items
foreach (var item in allItems)
{
    list.Items.Add(new ListItem(item));
}

// Add search box
window.AddControl(
    Controls.Prompt("Search:")
        .OnInputChanged((sender, text, window) =>
        {
            var list = window.FindControl<ListControl>("searchableList");
            if (list != null)
            {
                list.Items.Clear();

                var filtered = string.IsNullOrWhiteSpace(text)
                    ? allItems
                    : allItems.Where(i => i.Contains(text, StringComparison.OrdinalIgnoreCase));

                foreach (var item in filtered)
                {
                    list.Items.Add(new ListItem(item));
                }

                list.Invalidate();
            }
        })
        .Build()
);

window.AddControl(list);

Dynamic List Updates#

var list = Controls.List()
    .WithName("dynamicList")
    .WithHeight(10)
    .Build();

window.AddControl(list);

// Add button to add items
window.AddControl(
    Controls.Button("Add Item")
        .OnClick((s, e, w) =>
        {
            var list = w.FindControl<ListControl>("dynamicList");
            if (list != null)
            {
                var count = list.Items.Count + 1;
                list.Items.Add(new ListItem($"Item {count}"));
                list.Invalidate();
            }
        })
        .Build()
);

// Add button to remove selected
window.AddControl(
    Controls.Button("Remove Selected")
        .OnClick((s, e, w) =>
        {
            var list = w.FindControl<ListControl>("dynamicList");
            if (list != null && list.SelectedIndex >= 0)
            {
                list.Items.RemoveAt(list.SelectedIndex);
                list.Invalidate();
            }
        })
        .Build()
);

Formatted List Items#

var list = Controls.List()
    .AddItem("[green]Available[/] - Service Running")
    .AddItem("[yellow]Warning[/] - High CPU Usage")
    .AddItem("[red]Error[/] - Service Stopped")
    .AddItem("[blue]Info[/] - Update Available")
    .WithHeight(10)
    .Build();

window.AddControl(list);

File Browser#

public void ShowDirectoryContents(string path, ListControl list)
{
    list.Items.Clear();

    try
    {
        // Add parent directory option
        if (Directory.GetParent(path) != null)
        {
            list.Items.Add(new ListItem("[..] Parent Directory")
            {
                Tag = Directory.GetParent(path)?.FullName
            });
        }

        // Add directories
        foreach (var dir in Directory.GetDirectories(path))
        {
            var name = Path.GetFileName(dir);
            list.Items.Add(new ListItem($"[DIR] {name}")
            {
                Tag = dir
            });
        }

        // Add files
        foreach (var file in Directory.GetFiles(path))
        {
            var name = Path.GetFileName(file);
            list.Items.Add(new ListItem($"      {name}")
            {
                Tag = file
            });
        }
    }
    catch (Exception ex)
    {
        windowSystem.NotificationStateService.ShowNotification(
            "Error", ex.Message, NotificationSeverity.Danger);
    }

    list.Invalidate();
}

var list = Controls.List()
    .WithHeight(15)
    .OnItemActivated((sender, item, window) =>
    {
        var path = item.Tag as string;
        if (path != null && Directory.Exists(path))
        {
            ShowDirectoryContents(path, sender);
        }
    })
    .Build();

ShowDirectoryContents(Environment.CurrentDirectory, list);
window.AddControl(list);

Helper Methods#

Select Item Programmatically#

var list = window.FindControl<ListControl>("myList");
if (list != null)
{
    list.SelectedIndex = 0;  // Select first item
    list.Invalidate();
}

Clear Selection#

var list = window.FindControl<ListControl>("myList");
if (list != null)
{
    list.SelectedIndex = -1;  // No selection
    list.Invalidate();
}

Get Selected Item#

var list = window.FindControl<ListControl>("myList");
if (list != null && list.SelectedItem != null)
{
    string text = list.SelectedItem.Text;
    object? data = list.SelectedItem.Tag;
}

Best Practices#

1. Set appropriate height: Use WithHeight() to control visible items
2. Use Tag for data: Store custom objects in ListItem.Tag
3. Handle ItemActivated: Respond to double-click/Enter
4. Update on selection: Use OnSelectionChanged for master-detail patterns
5. Clear and rebuild: For filtering, clear Items and rebuild list
6. Call Invalidate: After modifying Items collection
7. Check selection: Always check SelectedIndex >= 0 before accessing SelectedItem
8. Adjust the wheel step: MouseWheelScrollSpeed (or .WithMouseWheelScrollSpeed()) defaults to ControlDefaults.DefaultScrollWheelLines, so setting that once at startup changes the wheel step for every list that hasn't overridden it: ControlDefaults.DefaultScrollWheelLines = 3;

Common Patterns#

Action on Selection#

var list = Controls.List()
    .AddItem("View Details")
    .AddItem("Edit Item")
    .AddItem("Delete Item")
    .OnItemActivated((s, item, w) =>
    {
        switch (item.Text)
        {
            case "View Details":
                ShowDetailsDialog();
                break;
            case "Edit Item":
                ShowEditDialog();
                break;
            case "Delete Item":
                ConfirmDelete();
                break;
        }
    })
    .Build();

List with Status Bar#

var list = Controls.List()
    .WithName("itemList")
    .WithHeight(10)
    .OnSelectionChanged((s, index, w) =>
    {
        var status = w.FindControl<MarkupControl>("statusBar");
        status?.SetContent($"Item {index + 1} of {s.Items.Count}");
    })
    .Build();

window.AddControl(list);
window.AddControl(
    Controls.Label("No selection")
        .WithName("statusBar")
        .StickyBottom()
        .Build()
);

See Also#

• TreeControl - For hierarchical data
• DropdownControl - For compact selection
• MenuControl - For menu-based navigation
